【Nvidia】Jetson Orin 平台VLM部署方法与指标评测

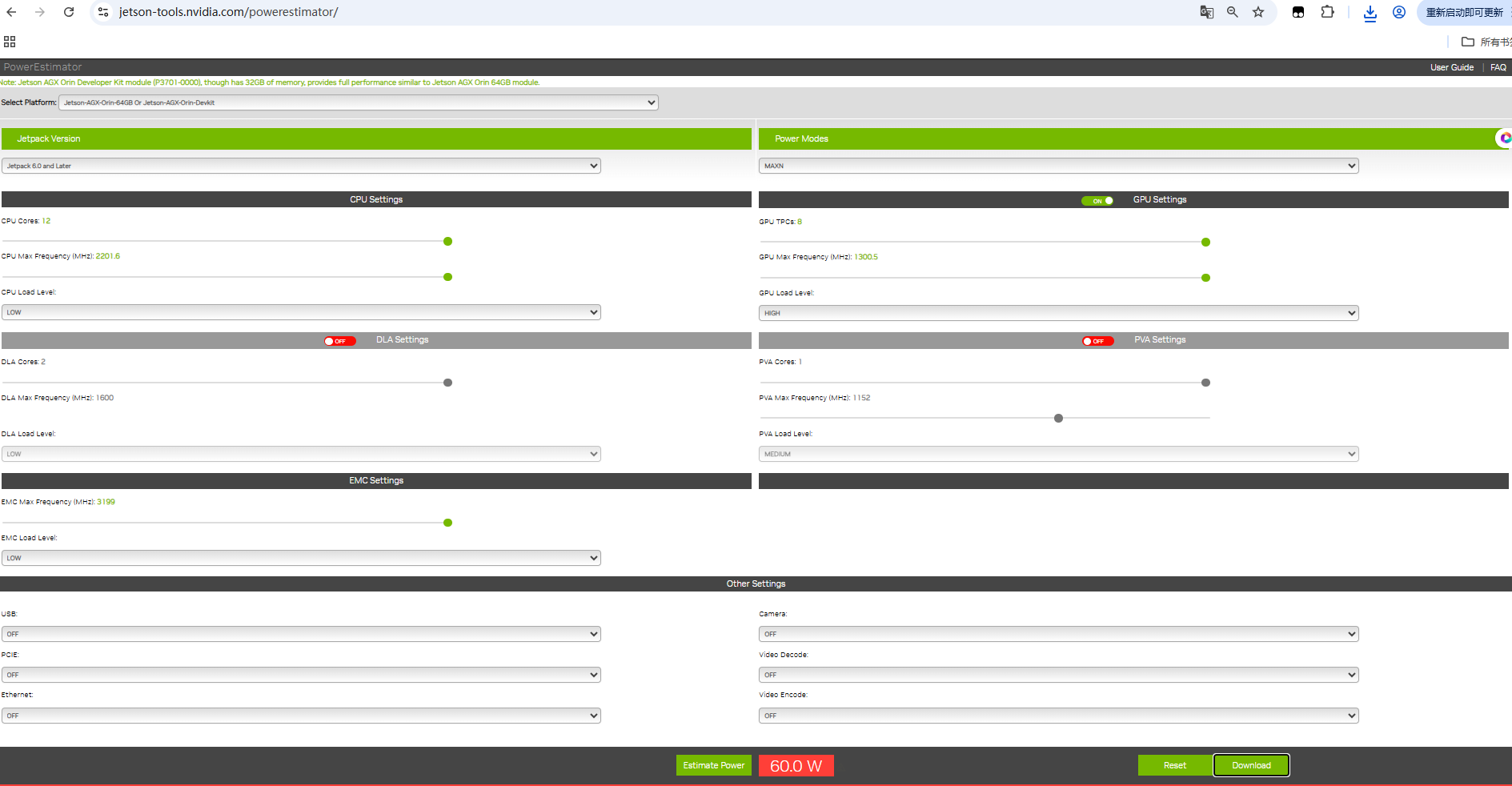

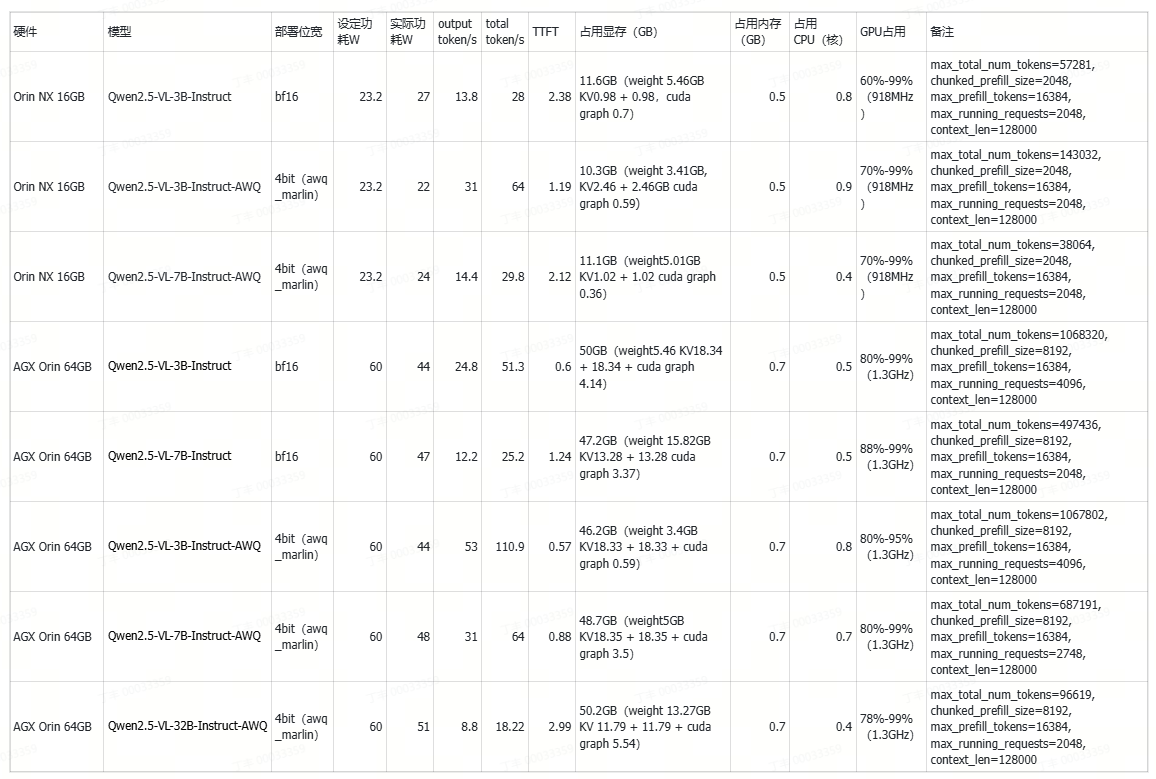

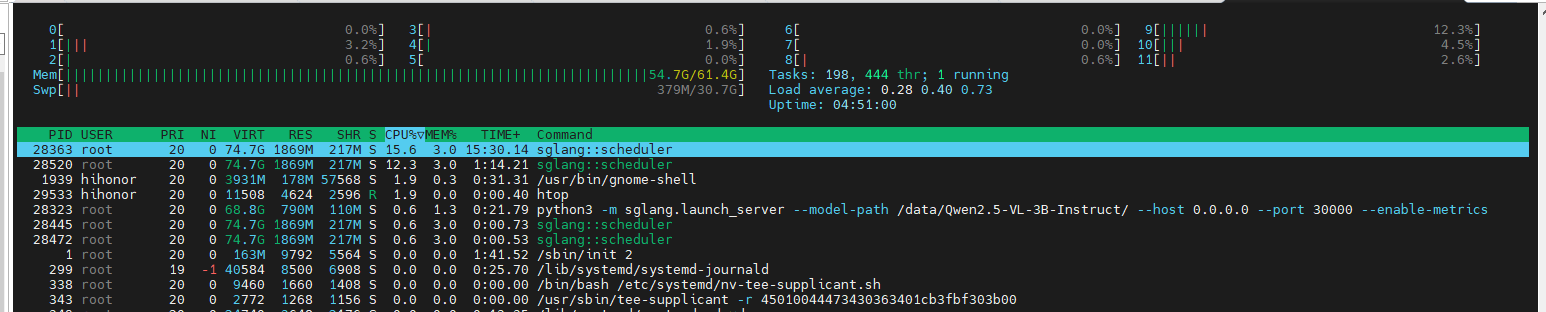

# Jetson Orin 测试 ## 2.1 直接测试 可以直接使用jetson container来部署sglang;也可以安装pytorch等jetson版本后直接运行sglang,可以直接使用第一种方案比较方便。 https://github.com/dusty-nv/jetson-containers https://hub.docker.com/r/dustynv/sglang https://hub.docker.com/r/dustynv/l4t-pytorch ### 2.1.1 镜像拉取并创建容器 ``` docker pull dustynv/sglang:r36.4-cu128-24.04 ``` 完成sglang的镜像拉取,然后启动容器,注意可以直接根据上方链接使用sglang的容器 ``` docker run --runtime nvidia -it --rm -v /data/:/data/ --network=host dustynv/sglang:r36.4-cu128-24.04 ``` ### 2.1.2 查看sglang 可以直接查看sglang版本 ``` root@tegra-ubuntu:/# pip list |grep sglang sglang 0.4.7.post1 /opt/venv/lib/python3.12/site-packages pip ``` ### 2.1.3 提前准备好模型启动 使用Qwen2.5-VL-3B模型测试 ``` python3 -m sglang.launch_server --model-path ./Qwen2.5-VL-3B-Instruct/ --host 0.0.0.0 --port 30000 --enable-metrics ``` ### 2.1.4 相关性能指标参考如下 执行mmlu的opencompass评测(纯文本调用评测先) - 功耗 27W左右(按照25W设置的功耗,因为是orin nx的设置,所以这里暂时没有修改,非agx orin的峰值功耗) - 显存(内存)占用30GB左右 fp32部署  ``` 10-23-2025 11:13:25 RAM 56177/62842MB (lfb 1x4MB) SWAP 379/31421MB (cached 0MB) CPU [0%@729,4%@729,2%@729,5%@729,0%@729,0%@729,0%@729,0%@729,0%@729,0%@729,0%@729,0%@729] GR3D_FREQ 99% cpu@55.843C tboard@44.875C soc2@51.718C tdiode@46C soc0@52.656C gpu@53.531C tj@55.843C soc1@52.718C VDDQ_VDD2_1V8AO 3918mW/3793mW VDD_GPU_SOC 11894mW/11871mW VDD_CPU_CV 0mW/46mW VIN_SYS_5V0 9676mW/9480mW ``` - 每秒token输出如下 ``` [2025-10-23 11:14:57] Decode batch. #running-req: 8, #token: 1544, token usage: 0.00, cuda graph: True, gen throughput (token/s): 86.95, #queue-req: 0 [2025-10-23 11:15:00] Decode batch. #running-req: 8, #token: 1864, token usage: 0.00, cuda graph: True, gen throughput (token/s): 96.25, #queue-req: 0 [2025-10-23 11:15:04] Decode batch. #running-req: 8, #token: 2184, token usage: 0.00, cuda graph: True, gen throughput (token/s): 96.18, #queue-req: 0 [2025-10-23 11:15:05] INFO: 192.168.1.200:37808 - "POST /v1/chat/completions HTTP/1.1" 200 OK [2025-10-23 11:15:07] Decode batch. #running-req: 7, #token: 2206, token usage: 0.00, cuda graph: True, gen throughput (token/s): 88.06, #queue-req: 0 [2025-10-23 11:15:09] INFO: 192.168.1.200:43068 - "POST /v1/chat/completions HTTP/1.1" 200 OK [2025-10-23 11:15:09] INFO: 192.168.1.200:40004 - "POST /v1/chat/completions HTTP/1.1" 200 OK [2025-10-23 11:15:10] Decode batch. #running-req: 5, #token: 1740, token usage: 0.00, cuda graph: True, gen throughput (token/s): 75.90, #queue-req: 0 ``` ### 2.1.5 实际opencompass mmlu的评测指标 可以对比一下跟4090上的差异 - Qwen2.5-VL-3B-Instruct-Jetson-SGLang-API ``` The markdown format results is as below: | dataset | version | metric | mode | Qwen2.5-VL-3B-Instruct-Jetson-SGLang-API | |----- | ----- | ----- | ----- | -----| | lukaemon_mmlu_college_biology | bf6b83 | accuracy | gen | 68.06 | | lukaemon_mmlu_college_chemistry | bf6b83 | accuracy | gen | 41.00 | | lukaemon_mmlu_college_computer_science | bf6b83 | accuracy | gen | 52.00 | | lukaemon_mmlu_college_mathematics | bf6b83 | accuracy | gen | 46.00 | | lukaemon_mmlu_college_physics | bf6b83 | accuracy | gen | 56.86 | | lukaemon_mmlu_electrical_engineering | bf6b83 | accuracy | gen | 58.62 | | lukaemon_mmlu_astronomy | bf6b83 | accuracy | gen | 67.11 | | lukaemon_mmlu_anatomy | bf6b83 | accuracy | gen | 57.78 | | lukaemon_mmlu_abstract_algebra | bf6b83 | accuracy | gen | 42.00 | | lukaemon_mmlu_machine_learning | bf6b83 | accuracy | gen | 50.89 | | lukaemon_mmlu_clinical_knowledge | bf6b83 | accuracy | gen | 67.55 | | lukaemon_mmlu_global_facts | bf6b83 | accuracy | gen | 43.00 | | lukaemon_mmlu_management | bf6b83 | accuracy | gen | 70.87 | | lukaemon_mmlu_nutrition | bf6b83 | accuracy | gen | 64.38 | | lukaemon_mmlu_marketing | bf6b83 | accuracy | gen | 79.06 | | lukaemon_mmlu_professional_accounting | bf6b83 | accuracy | gen | 49.65 | | lukaemon_mmlu_high_school_geography | bf6b83 | accuracy | gen | 74.75 | | lukaemon_mmlu_international_law | bf6b83 | accuracy | gen | 72.73 | | lukaemon_mmlu_moral_scenarios | bf6b83 | accuracy | gen | 47.26 | | lukaemon_mmlu_computer_security | bf6b83 | accuracy | gen | 76.00 | | lukaemon_mmlu_high_school_microeconomics | bf6b83 | accuracy | gen | 74.37 | | lukaemon_mmlu_professional_law | bf6b83 | accuracy | gen | 41.00 | | lukaemon_mmlu_medical_genetics | bf6b83 | accuracy | gen | 69.00 | | lukaemon_mmlu_professional_psychology | bf6b83 | accuracy | gen | 58.82 | | lukaemon_mmlu_jurisprudence | bf6b83 | accuracy | gen | 71.30 | | lukaemon_mmlu_world_religions | bf6b83 | accuracy | gen | 78.36 | | lukaemon_mmlu_philosophy | bf6b83 | accuracy | gen | 64.31 | | lukaemon_mmlu_virology | bf6b83 | accuracy | gen | 47.59 | | lukaemon_mmlu_high_school_chemistry | bf6b83 | accuracy | gen | 58.62 | | lukaemon_mmlu_public_relations | bf6b83 | accuracy | gen | 60.00 | | lukaemon_mmlu_high_school_macroeconomics | bf6b83 | accuracy | gen | 66.92 | | lukaemon_mmlu_human_sexuality | bf6b83 | accuracy | gen | 67.94 | | lukaemon_mmlu_elementary_mathematics | bf6b83 | accuracy | gen | 84.13 | | lukaemon_mmlu_high_school_physics | bf6b83 | accuracy | gen | 56.95 | | lukaemon_mmlu_high_school_computer_science | bf6b83 | accuracy | gen | 75.00 | | lukaemon_mmlu_high_school_european_history | bf6b83 | accuracy | gen | 73.94 | | lukaemon_mmlu_business_ethics | bf6b83 | accuracy | gen | 64.00 | | lukaemon_mmlu_moral_disputes | bf6b83 | accuracy | gen | 61.85 | | lukaemon_mmlu_high_school_statistics | bf6b83 | accuracy | gen | 62.50 | | lukaemon_mmlu_miscellaneous | bf6b83 | accuracy | gen | 76.12 | | lukaemon_mmlu_formal_logic | bf6b83 | accuracy | gen | 47.62 | | lukaemon_mmlu_high_school_government_and_politics | bf6b83 | accuracy | gen | 77.72 | | lukaemon_mmlu_prehistory | bf6b83 | accuracy | gen | 63.58 | | lukaemon_mmlu_security_studies | bf6b83 | accuracy | gen | 56.73 | | lukaemon_mmlu_high_school_biology | bf6b83 | accuracy | gen | 76.45 | | lukaemon_mmlu_logical_fallacies | bf6b83 | accuracy | gen | 71.78 | | lukaemon_mmlu_high_school_world_history | bf6b83 | accuracy | gen | 75.11 | | lukaemon_mmlu_professional_medicine | bf6b83 | accuracy | gen | 61.76 | | lukaemon_mmlu_high_school_mathematics | bf6b83 | accuracy | gen | 61.11 | | lukaemon_mmlu_college_medicine | bf6b83 | accuracy | gen | 65.32 | | lukaemon_mmlu_high_school_us_history | bf6b83 | accuracy | gen | 74.02 | | lukaemon_mmlu_sociology | bf6b83 | accuracy | gen | 75.62 | | lukaemon_mmlu_econometrics | bf6b83 | accuracy | gen | 57.02 | | lukaemon_mmlu_high_school_psychology | bf6b83 | accuracy | gen | 79.63 | | lukaemon_mmlu_human_aging | bf6b83 | accuracy | gen | 64.13 | | lukaemon_mmlu_us_foreign_policy | bf6b83 | accuracy | gen | 76.00 | | lukaemon_mmlu_conceptual_physics | bf6b83 | accuracy | gen | 67.66 | ``` - Qwen2.5-VL-7B-Instruct-Jetson-SGLang-API ``` | dataset | version | metric | mode | Qwen2.5-VL-7B-Instruct-Jetson-SGLang-API | |----- | ----- | ----- | ----- | -----| | lukaemon_mmlu_college_biology | bf6b83 | accuracy | gen | 82.64 | | lukaemon_mmlu_college_chemistry | bf6b83 | accuracy | gen | 54.00 | | lukaemon_mmlu_college_computer_science | bf6b83 | accuracy | gen | 59.00 | | lukaemon_mmlu_college_mathematics | bf6b83 | accuracy | gen | 46.00 | | lukaemon_mmlu_college_physics | bf6b83 | accuracy | gen | 64.71 | | lukaemon_mmlu_electrical_engineering | bf6b83 | accuracy | gen | 64.14 | | lukaemon_mmlu_astronomy | bf6b83 | accuracy | gen | 75.66 | | lukaemon_mmlu_anatomy | bf6b83 | accuracy | gen | 63.70 | | lukaemon_mmlu_abstract_algebra | bf6b83 | accuracy | gen | 54.00 | | lukaemon_mmlu_machine_learning | bf6b83 | accuracy | gen | 53.57 | | lukaemon_mmlu_clinical_knowledge | bf6b83 | accuracy | gen | 77.36 | | lukaemon_mmlu_global_facts | bf6b83 | accuracy | gen | 45.00 | | lukaemon_mmlu_management | bf6b83 | accuracy | gen | 80.58 | | lukaemon_mmlu_nutrition | bf6b83 | accuracy | gen | 72.22 | | lukaemon_mmlu_marketing | bf6b83 | accuracy | gen | 87.18 | | lukaemon_mmlu_professional_accounting | bf6b83 | accuracy | gen | 53.55 | | lukaemon_mmlu_high_school_geography | bf6b83 | accuracy | gen | 82.32 | | lukaemon_mmlu_international_law | bf6b83 | accuracy | gen | 73.55 | | lukaemon_mmlu_moral_scenarios | bf6b83 | accuracy | gen | 40.11 | | lukaemon_mmlu_computer_security | bf6b83 | accuracy | gen | 72.00 | | lukaemon_mmlu_high_school_microeconomics | bf6b83 | accuracy | gen | 80.25 | | lukaemon_mmlu_professional_law | bf6b83 | accuracy | gen | 46.09 | | lukaemon_mmlu_medical_genetics | bf6b83 | accuracy | gen | 76.00 | | lukaemon_mmlu_professional_psychology | bf6b83 | accuracy | gen | 67.65 | | lukaemon_mmlu_jurisprudence | bf6b83 | accuracy | gen | 71.30 | | lukaemon_mmlu_world_religions | bf6b83 | accuracy | gen | 80.12 | | lukaemon_mmlu_philosophy | bf6b83 | accuracy | gen | 71.06 | | lukaemon_mmlu_virology | bf6b83 | accuracy | gen | 51.81 | | lukaemon_mmlu_high_school_chemistry | bf6b83 | accuracy | gen | 67.00 | | lukaemon_mmlu_public_relations | bf6b83 | accuracy | gen | 60.91 | | lukaemon_mmlu_high_school_macroeconomics | bf6b83 | accuracy | gen | 73.33 | | lukaemon_mmlu_human_sexuality | bf6b83 | accuracy | gen | 73.28 | | lukaemon_mmlu_elementary_mathematics | bf6b83 | accuracy | gen | 92.06 | | lukaemon_mmlu_high_school_physics | bf6b83 | accuracy | gen | 68.21 | | lukaemon_mmlu_high_school_computer_science | bf6b83 | accuracy | gen | 86.00 | | lukaemon_mmlu_high_school_european_history | bf6b83 | accuracy | gen | 76.97 | | lukaemon_mmlu_business_ethics | bf6b83 | accuracy | gen | 67.00 | | lukaemon_mmlu_moral_disputes | bf6b83 | accuracy | gen | 66.76 | | lukaemon_mmlu_high_school_statistics | bf6b83 | accuracy | gen | 73.15 | | lukaemon_mmlu_miscellaneous | bf6b83 | accuracy | gen | 84.55 | | lukaemon_mmlu_formal_logic | bf6b83 | accuracy | gen | 50.00 | | lukaemon_mmlu_high_school_government_and_politics | bf6b83 | accuracy | gen | 90.67 | | lukaemon_mmlu_prehistory | bf6b83 | accuracy | gen | 76.23 | | lukaemon_mmlu_security_studies | bf6b83 | accuracy | gen | 65.31 | | lukaemon_mmlu_high_school_biology | bf6b83 | accuracy | gen | 85.16 | | lukaemon_mmlu_logical_fallacies | bf6b83 | accuracy | gen | 77.30 | | lukaemon_mmlu_high_school_world_history | bf6b83 | accuracy | gen | 73.42 | | lukaemon_mmlu_professional_medicine | bf6b83 | accuracy | gen | 73.16 | | lukaemon_mmlu_high_school_mathematics | bf6b83 | accuracy | gen | 60.00 | | lukaemon_mmlu_college_medicine | bf6b83 | accuracy | gen | 71.68 | | lukaemon_mmlu_high_school_us_history | bf6b83 | accuracy | gen | 78.92 | | lukaemon_mmlu_sociology | bf6b83 | accuracy | gen | 79.60 | | lukaemon_mmlu_econometrics | bf6b83 | accuracy | gen | 54.39 | | lukaemon_mmlu_high_school_psychology | bf6b83 | accuracy | gen | 88.44 | | lukaemon_mmlu_human_aging | bf6b83 | accuracy | gen | 72.20 | | lukaemon_mmlu_us_foreign_policy | bf6b83 | accuracy | gen | 82.00 | | lukaemon_mmlu_conceptual_physics | bf6b83 | accuracy | gen | 78.72 | ``` - Qwen2.5-VL-7B-Instruct-AWQ-Jetson-SGLang-API ``` The markdown format results is as below: | dataset | version | metric | mode | Qwen2.5-VL-7B-Instruct-AWQ-Jetson-SGLang-API | |----- | ----- | ----- | ----- | -----| | lukaemon_mmlu_college_biology | bf6b83 | accuracy | gen | 80.56 | | lukaemon_mmlu_college_chemistry | bf6b83 | accuracy | gen | 51.00 | | lukaemon_mmlu_college_computer_science | bf6b83 | accuracy | gen | 63.00 | | lukaemon_mmlu_college_mathematics | bf6b83 | accuracy | gen | 43.00 | | lukaemon_mmlu_college_physics | bf6b83 | accuracy | gen | 66.67 | | lukaemon_mmlu_electrical_engineering | bf6b83 | accuracy | gen | 66.21 | | lukaemon_mmlu_astronomy | bf6b83 | accuracy | gen | 71.71 | | lukaemon_mmlu_anatomy | bf6b83 | accuracy | gen | 59.26 | | lukaemon_mmlu_abstract_algebra | bf6b83 | accuracy | gen | 49.00 | | lukaemon_mmlu_machine_learning | bf6b83 | accuracy | gen | 50.89 | | lukaemon_mmlu_clinical_knowledge | bf6b83 | accuracy | gen | 74.34 | | lukaemon_mmlu_global_facts | bf6b83 | accuracy | gen | 46.00 | | lukaemon_mmlu_management | bf6b83 | accuracy | gen | 78.64 | | lukaemon_mmlu_nutrition | bf6b83 | accuracy | gen | 73.20 | | lukaemon_mmlu_marketing | bf6b83 | accuracy | gen | 85.90 | | lukaemon_mmlu_professional_accounting | bf6b83 | accuracy | gen | 54.26 | | lukaemon_mmlu_high_school_geography | bf6b83 | accuracy | gen | 82.32 | | lukaemon_mmlu_international_law | bf6b83 | accuracy | gen | 70.25 | | lukaemon_mmlu_moral_scenarios | bf6b83 | accuracy | gen | 46.82 | | lukaemon_mmlu_computer_security | bf6b83 | accuracy | gen | 68.00 | | lukaemon_mmlu_high_school_microeconomics | bf6b83 | accuracy | gen | 78.15 | | lukaemon_mmlu_professional_law | bf6b83 | accuracy | gen | 44.39 | | lukaemon_mmlu_medical_genetics | bf6b83 | accuracy | gen | 76.00 | | lukaemon_mmlu_professional_psychology | bf6b83 | accuracy | gen | 65.20 | | lukaemon_mmlu_jurisprudence | bf6b83 | accuracy | gen | 71.30 | | lukaemon_mmlu_world_religions | bf6b83 | accuracy | gen | 77.19 | | lukaemon_mmlu_philosophy | bf6b83 | accuracy | gen | 65.59 | | lukaemon_mmlu_virology | bf6b83 | accuracy | gen | 47.59 | | lukaemon_mmlu_high_school_chemistry | bf6b83 | accuracy | gen | 63.55 | | lukaemon_mmlu_public_relations | bf6b83 | accuracy | gen | 60.00 | | lukaemon_mmlu_high_school_macroeconomics | bf6b83 | accuracy | gen | 73.33 | | lukaemon_mmlu_human_sexuality | bf6b83 | accuracy | gen | 77.10 | | lukaemon_mmlu_elementary_mathematics | bf6b83 | accuracy | gen | 90.74 | | lukaemon_mmlu_high_school_physics | bf6b83 | accuracy | gen | 60.26 | | lukaemon_mmlu_high_school_computer_science | bf6b83 | accuracy | gen | 82.00 | | lukaemon_mmlu_high_school_european_history | bf6b83 | accuracy | gen | 67.88 | | lukaemon_mmlu_business_ethics | bf6b83 | accuracy | gen | 68.00 | | lukaemon_mmlu_moral_disputes | bf6b83 | accuracy | gen | 65.32 | | lukaemon_mmlu_high_school_statistics | bf6b83 | accuracy | gen | 70.37 | | lukaemon_mmlu_miscellaneous | bf6b83 | accuracy | gen | 82.12 | | lukaemon_mmlu_formal_logic | bf6b83 | accuracy | gen | 44.44 | | lukaemon_mmlu_high_school_government_and_politics | bf6b83 | accuracy | gen | 87.56 | | lukaemon_mmlu_prehistory | bf6b83 | accuracy | gen | 72.53 | | lukaemon_mmlu_security_studies | bf6b83 | accuracy | gen | 63.67 | | lukaemon_mmlu_high_school_biology | bf6b83 | accuracy | gen | 81.61 | | lukaemon_mmlu_logical_fallacies | bf6b83 | accuracy | gen | 74.23 | | lukaemon_mmlu_high_school_world_history | bf6b83 | accuracy | gen | 70.46 | | lukaemon_mmlu_professional_medicine | bf6b83 | accuracy | gen | 70.22 | | lukaemon_mmlu_high_school_mathematics | bf6b83 | accuracy | gen | 55.56 | | lukaemon_mmlu_college_medicine | bf6b83 | accuracy | gen | 68.79 | | lukaemon_mmlu_high_school_us_history | bf6b83 | accuracy | gen | 75.00 | | lukaemon_mmlu_sociology | bf6b83 | accuracy | gen | 72.64 | | lukaemon_mmlu_econometrics | bf6b83 | accuracy | gen | 48.25 | | lukaemon_mmlu_high_school_psychology | bf6b83 | accuracy | gen | 88.07 | | lukaemon_mmlu_human_aging | bf6b83 | accuracy | gen | 67.71 | | lukaemon_mmlu_us_foreign_policy | bf6b83 | accuracy | gen | 78.00 | | lukaemon_mmlu_conceptual_physics | bf6b83 | accuracy | gen | 74.89 | ``` ## 2.2 使用SGLANG部署的一些实际测试数据结果对比 - 使用EvalScope进行压测压测指令如下,使用一个进程发送10个请求,请求结果为多模态数据。通过以太网直连和本地请求差别不大。 ``` evalscope perf \ --parallel 1 \ --number 10 \ --model Qwen2.5-VL-7B-Instruct \ --url http://192.168.1.102:30000/v1/chat/completions \ --api openai --dataset random_vl --max-tokens 1024 --min-tokens 1024 \ --prefix-length 0 --min-prompt-length 1024 --max-prompt-length 1024 \ --tokenizer-path /mnt/fd9ef272-d51b-4896-bfc8-9beaa52ae4a5/dingfeng1/Qwen2.5-VL-7B-Instruct/ \ --extra-args '{"ignore_eos": true}' ```  - AGX nvpmodel  ## 2.3 Jetson AGX Orin and Thor 大模型部署性能分析  https://elinux.org/Jetson/L4T/Jetson_AI_Stack#AGX_Orin 从上方连接中可以找到详细的测试报告,针对于Nvidia官方给出的指标,值得注意的是图表只是针对于速度进行了分析,并且给出了token/s的输出结果,但是由于是(The table is run with VLLM with quantization=w4a 16, max concurrency =8, input seq len = 2048 and output seg len = 128.)w4a16的结果,所以具体的精度并没有看到。如果想要复现性能,需要严格遵循量化策略,否则很难达到实际的性能。 # 3 结论 - 使用SGLANG框架可以对VLM进行部署,同时基于prometheus+grafana的组合可以充分展示后端的性能 - SGLANG 0.5.4的版本提供了一些offline quantization的脚本可以将模型进行转化,否则模型如果没有quantization_config可能无法支持执行offline quantization选项 - 从实际部署来看使用opencompass+VLMEvalKit可以构建自定义数据流用于自有模型的评测(主要是针对一些量化部署优化的版本,可以创建多个工作流) - Jetson NX orin 16GB可以用于部署Qwen2.5 VL 3B或者7B量化版的模型,从指标来看模型的整体损失在一些非复杂指标上看差异不大,不过量化都是基于官方的AWQ版本模型;Qwen3 有官方的FP8版本,从显存占用来看也能够正常执行。剩余显存用于KVCache使用,仍可在一定程度上加速token输出 - Jetson AGX orin 64GB可以基本部署当前主要的模型,性能方面可根据实时性要求调整,实测来看按照官方给出的指标基本能够对其。从官方指标看,对VLM和LLM的输出效率已经不错。针对VLA的输出仍然较为紧俏。 # Annexe - https://www.qbitai.com/2025/05/281230.html - https://github.com/dusty-nv/jetson-containers - https://github.com/open-compass/VLMEvalKit/blob/main/run.py - https://rank.opencompass.org.cn/leaderboard-multimodal - https://opencompass.readthedocs.io/zh-cn/latest/get_started/quick_start.html - https://rank.opencompass.org.cn/leaderboard-llm - https://github.com/dusty-nv/jetson-containers # 测试结果 - Jetson Orin NX 16GB Qwen2.5VL-7B-Instruct-AWQ 2025-10-28 11:13:09 - evalscope - INFO: Test connection successful. 2025-10-28 11:13:09 - evalscope - INFO: Save the data base to: outputs/20251028_111152/Qwen2.5-VL-7B-Instruct/benchmark_data.db Processing: 90%|██████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████▍ | 9/10 [11:48<01:18, 78.58s/it]2025-10-28 11:26:17 - evalscope - INFO: { "Time taken for tests (s)": 787.4081, "Number of concurrency": 1, "Total requests": 10, "Succeed requests": 10, "Failed requests": 0, "Output token throughput (tok/s)": 14.4455, "Total token throughput (tok/s)": 29.822, "Request throughput (req/s)": 0.0141, "Average latency (s)": 78.7394, "Average time to first token (s)": 2.1271, "Average time per output token (s)": 0.0749, "Average inter-token latency (s)": 0.083, "Average input tokens per request": 1090.0, "Average output tokens per request": 1024.0 } Processing: 100%|███████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 10/10 [13:07<00:00, 78.75s/it] 2025-10-28 11:26:17 - evalscope - INFO: Benchmarking summary: +-----------------------------------+-----------+ | Key | Value | +===================================+===========+ | Time taken for tests (s) | 787.408 | +-----------------------------------+-----------+ | Number of concurrency | 1 | +-----------------------------------+-----------+ | Total requests | 10 | +-----------------------------------+-----------+ | Succeed requests | 10 | +-----------------------------------+-----------+ | Failed requests | 0 | +-----------------------------------+-----------+ | Output token throughput (tok/s) | 14.4455 | +-----------------------------------+-----------+ | Total token throughput (tok/s) | 29.822 | +-----------------------------------+-----------+ | Request throughput (req/s) | 0.0141 | +-----------------------------------+-----------+ | Average latency (s) | 78.7394 | +-----------------------------------+-----------+ | Average time to first token (s) | 2.1271 | +-----------------------------------+-----------+ | Average time per output token (s) | 0.0749 | +-----------------------------------+-----------+ | Average inter-token latency (s) | 0.083 | +-----------------------------------+-----------+ | Average input tokens per request | 1090 | +-----------------------------------+-----------+ | Average output tokens per request | 1024 | +-----------------------------------+-----------+ 2025-10-28 11:26:17 - evalscope - INFO: Percentile results: +-------------+----------+---------+----------+-------------+--------------+---------------+----------------+---------------+ | Percentiles | TTFT (s) | ITL (s) | TPOT (s) | Latency (s) | Input tokens | Output tokens | Output (tok/s) | Total (tok/s) | +-------------+----------+---------+----------+-------------+--------------+---------------+----------------+---------------+ | 10% | 1.9576 | 0.0743 | 0.0748 | 78.5232 | 1090 | 1024 | 13.0223 | 26.8839 | | 25% | 1.9585 | 0.0746 | 0.0748 | 78.5264 | 1090 | 1024 | 13.0249 | 26.8894 | | 50% | 1.9605 | 0.0749 | 0.0749 | 78.6093 | 1090 | 1024 | 13.028 | 26.8957 | | 66% | 1.9605 | 0.0751 | 0.0749 | 78.6145 | 1090 | 1024 | 13.0386 | 26.9177 | | 75% | 1.9625 | 0.0753 | 0.0749 | 78.6184 | 1090 | 1024 | 13.0402 | 26.9209 | | 80% | 1.9639 | 0.0754 | 0.0749 | 78.6345 | 1090 | 1024 | 13.0407 | 26.922 | | 90% | 3.634 | 0.1492 | 0.075 | 80.2125 | 1090 | 1024 | 13.0414 | 26.9233 | | 95% | 3.634 | 0.15 | 0.075 | 80.2125 | 1090 | 1024 | 13.0414 | 26.9233 | | 98% | 3.634 | 0.1504 | 0.075 | 80.2125 | 1090 | 1024 | 13.0414 | 26.9233 | | 99% | 3.634 | 0.1506 | 0.075 | 80.2125 | 1090 | 1024 | 13.0414 | 26.9233 | +-------------+----------+---------+----------+-------------+--------------+---------------+----------------+---------------+ 2025-10-28 11:26:17 - evalscope - INFO: Save the summary to: outputs/20251028_111152/Qwen2.5-VL-7B-Instruct - Jetson Orin NX 16GB Qwen2.5VL-3B-Instruct-AWQ 2025-10-28 07:31:15 - evalscope - INFO: Test connection successful. 2025-10-28 07:31:16 - evalscope - INFO: Save the data base to: outputs/20251028_073037/Qwen2.5-VL-3B-Instruct-AWQ/benchmark_data.db Processing: 90%|██████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████▍ | 9/10 [05:28<00:36, 36.37s/it]2025-10-28 07:37:21 - evalscope - INFO: { "Time taken for tests (s)": 364.9373, "Number of concurrency": 1, "Total requests": 10, "Succeed requests": 10, "Failed requests": 0, "Output token throughput (tok/s)": 31.1624, "Total token throughput (tok/s)": 64.3303, "Request throughput (req/s)": 0.0304, "Average latency (s)": 36.4749, "Average time to first token (s)": 1.1994, "Average time per output token (s)": 0.0345, "Average inter-token latency (s)": 0.0345, "Average input tokens per request": 1089.9, "Average output tokens per request": 1024.0 } Processing: 100%|███████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 10/10 [06:05<00:00, 36.51s/it] 2025-10-28 07:37:21 - evalscope - INFO: Benchmarking summary: +-----------------------------------+-----------+ | Key | Value | +===================================+===========+ | Time taken for tests (s) | 364.937 | +-----------------------------------+-----------+ | Number of concurrency | 1 | +-----------------------------------+-----------+ | Total requests | 10 | +-----------------------------------+-----------+ | Succeed requests | 10 | +-----------------------------------+-----------+ | Failed requests | 0 | +-----------------------------------+-----------+ | Output token throughput (tok/s) | 31.1624 | +-----------------------------------+-----------+ | Total token throughput (tok/s) | 64.3303 | +-----------------------------------+-----------+ | Request throughput (req/s) | 0.0304 | +-----------------------------------+-----------+ | Average latency (s) | 36.4749 | +-----------------------------------+-----------+ | Average time to first token (s) | 1.1994 | +-----------------------------------+-----------+ | Average time per output token (s) | 0.0345 | +-----------------------------------+-----------+ | Average inter-token latency (s) | 0.0345 | +-----------------------------------+-----------+ | Average input tokens per request | 1089.9 | +-----------------------------------+-----------+ | Average output tokens per request | 1024 | +-----------------------------------+-----------+ 2025-10-28 07:37:21 - evalscope - INFO: Percentile results: +-------------+----------+---------+----------+-------------+--------------+---------------+----------------+---------------+ | Percentiles | TTFT (s) | ITL (s) | TPOT (s) | Latency (s) | Input tokens | Output tokens | Output (tok/s) | Total (tok/s) | +-------------+----------+---------+----------+-------------+--------------+---------------+----------------+---------------+ | 10% | 1.0108 | 0.034 | 0.0345 | 36.2704 | 1090 | 1024 | 28.1535 | 58.1216 | | 25% | 1.0109 | 0.0342 | 0.0345 | 36.2841 | 1090 | 1024 | 28.1826 | 58.1786 | | 50% | 1.0226 | 0.0344 | 0.0345 | 36.3192 | 1090 | 1024 | 28.2138 | 58.246 | | 66% | 1.0236 | 0.0346 | 0.0345 | 36.3315 | 1090 | 1024 | 28.2213 | 58.2616 | | 75% | 1.0272 | 0.0347 | 0.0345 | 36.3345 | 1090 | 1024 | 28.2217 | 58.2624 | | 80% | 1.1157 | 0.0348 | 0.0345 | 36.372 | 1090 | 1024 | 28.2324 | 58.2845 | | 90% | 2.7487 | 0.035 | 0.0345 | 37.9942 | 1090 | 1024 | 28.237 | 58.2941 | | 95% | 2.7487 | 0.0353 | 0.0345 | 37.9942 | 1090 | 1024 | 28.237 | 58.2941 | | 98% | 2.7487 | 0.0357 | 0.0345 | 37.9942 | 1090 | 1024 | 28.237 | 58.2941 | | 99% | 2.7487 | 0.0359 | 0.0345 | 37.9942 | 1090 | 1024 | 28.237 | 58.2941 | +-------------+----------+---------+----------+-------------+--------------+---------------+----------------+---------------+ 2025-10-28 07:37:21 - evalscope - INFO: Save the summary to: outputs/20251028_073037/Qwen2.5-VL-3B-Instruct-AWQ - Jetson Orin NX 16GB Qwen2.5VL-3B-Instruct 2025-10-28 06:44:50 - evalscope - INFO: Test connection successful. 2025-10-28 06:44:51 - evalscope - INFO: Save the data base to: outputs/20251028_064206/Qwen2.5-VL-3B-Instruct/benchmark_data.db Processing: 90%|█████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████▌ | 9/10 [24:43<02:44, 164.87s/it]2025-10-28 07:12:20 - evalscope - INFO: { "Time taken for tests (s)": 1648.7701, "Number of concurrency": 1, "Total requests": 10, "Succeed requests": 10, "Failed requests": 0, "Output token throughput (tok/s)": 13.8011, "Total token throughput (tok/s)": 28.028, "Request throughput (req/s)": 0.0067, "Average latency (s)": 164.8485, "Average time to first token (s)": 2.3873, "Average time per output token (s)": 0.0794, "Average inter-token latency (s)": 0.0847, "Average input tokens per request": 2111.2, "Average output tokens per request": 2048.0 } Processing: 100%|██████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 10/10 [27:28<00:00, 164.89s/it] 2025-10-28 07:12:20 - evalscope - INFO: Benchmarking summary: +-----------------------------------+-----------+ | Key | Value | +===================================+===========+ | Time taken for tests (s) | 1648.77 | +-----------------------------------+-----------+ | Number of concurrency | 1 | +-----------------------------------+-----------+ | Total requests | 10 | +-----------------------------------+-----------+ | Succeed requests | 10 | +-----------------------------------+-----------+ | Failed requests | 0 | +-----------------------------------+-----------+ | Output token throughput (tok/s) | 13.8011 | +-----------------------------------+-----------+ | Total token throughput (tok/s) | 28.028 | +-----------------------------------+-----------+ | Request throughput (req/s) | 0.0067 | +-----------------------------------+-----------+ | Average latency (s) | 164.849 | +-----------------------------------+-----------+ | Average time to first token (s) | 2.3873 | +-----------------------------------+-----------+ | Average time per output token (s) | 0.0794 | +-----------------------------------+-----------+ | Average inter-token latency (s) | 0.0847 | +-----------------------------------+-----------+ | Average input tokens per request | 2111.2 | +-----------------------------------+-----------+ | Average output tokens per request | 2048 | +-----------------------------------+-----------+ 2025-10-28 07:12:20 - evalscope - INFO: Percentile results: +-------------+----------+---------+----------+-------------+--------------+---------------+----------------+---------------+ | Percentiles | TTFT (s) | ITL (s) | TPOT (s) | Latency (s) | Input tokens | Output tokens | Output (tok/s) | Total (tok/s) | +-------------+----------+---------+----------+-------------+--------------+---------------+----------------+---------------+ | 10% | 2.3275 | 0.0788 | 0.0793 | 164.7491 | 2114 | 2048 | 12.4184 | 25.2371 | | 25% | 2.3319 | 0.0791 | 0.0793 | 164.7856 | 2114 | 2048 | 12.4231 | 25.2466 | | 50% | 2.3454 | 0.0794 | 0.0794 | 164.8226 | 2114 | 2048 | 12.4272 | 25.2548 | | 66% | 2.35 | 0.0796 | 0.0794 | 164.8417 | 2114 | 2048 | 12.4274 | 25.2554 | | 75% | 2.3667 | 0.0797 | 0.0794 | 164.8539 | 2114 | 2048 | 12.4283 | 25.2571 | | 80% | 2.4258 | 0.0798 | 0.0794 | 164.9161 | 2114 | 2048 | 12.431 | 25.2627 | | 90% | 2.7384 | 0.0804 | 0.0794 | 165.2194 | 2114 | 2048 | 12.4347 | 25.2701 | | 95% | 2.7384 | 0.1585 | 0.0794 | 165.2194 | 2114 | 2048 | 12.4347 | 25.2701 | | 98% | 2.7384 | 0.1592 | 0.0794 | 165.2194 | 2114 | 2048 | 12.4347 | 25.2701 | | 99% | 2.7384 | 0.1595 | 0.0794 | 165.2194 | 2114 | 2048 | 12.4347 | 25.2701 | +-------------+----------+---------+----------+-------------+--------------+---------------+----------------+---------------+ 2025-10-28 07:12:20 - evalscope - INFO: Save the summary to: outputs/20251028_064206/Qwen2.5-VL-3B-Instruct - Jetson AGX Orin 64GB Qwen2.5VL-7B-Instruct 2025-10-28 08:26:55 - evalscope - INFO: Test connection successful. 2025-10-28 08:26:56 - evalscope - INFO: Save the data base to: outputs/20251028_082520/Qwen2.5-VL-7B-Instruct/benchmark_data.db Processing: 90%|██████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████▍ | 9/10 [13:58<01:33, 93.17s/it]2025-10-28 08:42:28 - evalscope - INFO: { "Time taken for tests (s)": 931.9475, "Number of concurrency": 1, "Total requests": 10, "Succeed requests": 10, "Failed requests": 0, "Output token throughput (tok/s)": 12.2087, "Total token throughput (tok/s)": 25.2031, "Request throughput (req/s)": 0.0119, "Average latency (s)": 93.1783, "Average time to first token (s)": 1.2425, "Average time per output token (s)": 0.0899, "Average inter-token latency (s)": 0.0954, "Average input tokens per request": 1089.9, "Average output tokens per request": 1024.0 } Processing: 100%|███████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 10/10 [15:32<00:00, 93.21s/it] 2025-10-28 08:42:28 - evalscope - INFO: Benchmarking summary: +-----------------------------------+-----------+ | Key | Value | +===================================+===========+ | Time taken for tests (s) | 931.947 | +-----------------------------------+-----------+ | Number of concurrency | 1 | +-----------------------------------+-----------+ | Total requests | 10 | +-----------------------------------+-----------+ | Succeed requests | 10 | +-----------------------------------+-----------+ | Failed requests | 0 | +-----------------------------------+-----------+ | Output token throughput (tok/s) | 12.2087 | +-----------------------------------+-----------+ | Total token throughput (tok/s) | 25.2031 | +-----------------------------------+-----------+ | Request throughput (req/s) | 0.0119 | +-----------------------------------+-----------+ | Average latency (s) | 93.1783 | +-----------------------------------+-----------+ | Average time to first token (s) | 1.2425 | +-----------------------------------+-----------+ | Average time per output token (s) | 0.0899 | +-----------------------------------+-----------+ | Average inter-token latency (s) | 0.0954 | +-----------------------------------+-----------+ | Average input tokens per request | 1089.9 | +-----------------------------------+-----------+ | Average output tokens per request | 1024 | +-----------------------------------+-----------+ 2025-10-28 08:42:28 - evalscope - INFO: Percentile results: +-------------+----------+---------+----------+-------------+--------------+---------------+----------------+---------------+ | Percentiles | TTFT (s) | ITL (s) | TPOT (s) | Latency (s) | Input tokens | Output tokens | Output (tok/s) | Total (tok/s) | +-------------+----------+---------+----------+-------------+--------------+---------------+----------------+---------------+ | 10% | 1.165 | 0.0893 | 0.0898 | 93.0585 | 1090 | 1024 | 10.9847 | 22.6667 | | 25% | 1.1651 | 0.0896 | 0.0898 | 93.0792 | 1090 | 1024 | 10.9869 | 22.6819 | | 50% | 1.1766 | 0.0899 | 0.0899 | 93.1483 | 1090 | 1024 | 10.9938 | 22.6962 | | 66% | 1.1793 | 0.0901 | 0.0899 | 93.1854 | 1090 | 1024 | 10.9955 | 22.6996 | | 75% | 1.1844 | 0.0903 | 0.0899 | 93.2022 | 1090 | 1024 | 11.0014 | 22.7118 | | 80% | 1.2404 | 0.0904 | 0.0899 | 93.2204 | 1090 | 1024 | 11.0038 | 22.7169 | | 90% | 1.806 | 0.0908 | 0.09 | 93.563 | 1090 | 1024 | 11.0045 | 22.7182 | | 95% | 1.806 | 0.1793 | 0.09 | 93.563 | 1090 | 1024 | 11.0045 | 22.7182 | | 98% | 1.806 | 0.1801 | 0.09 | 93.563 | 1090 | 1024 | 11.0045 | 22.7182 | | 99% | 1.806 | 0.1805 | 0.09 | 93.563 | 1090 | 1024 | 11.0045 | 22.7182 | +-------------+----------+---------+----------+-------------+--------------+---------------+----------------+---------------+ 2025-10-28 08:42:28 - evalscope - INFO: Save the summary to: outputs/20251028_082520/Qwen2.5-VL-7B-Instruct - Jetson AGX Orin 64GB Qwen2.5VL-3B-Instruct 2025-10-28 09:10:11 - evalscope - INFO: Test connection successful. 2025-10-28 09:10:12 - evalscope - INFO: Save the data base to: outputs/20251028_090923/Qwen2.5-VL-3B-Instruct/benchmark_data.db Processing: 90%|██████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████▍ | 9/10 [06:51<00:45, 45.71s/it]2025-10-28 09:17:49 - evalscope - INFO: { "Time taken for tests (s)": 457.2854, "Number of concurrency": 1, "Total requests": 10, "Succeed requests": 10, "Failed requests": 0, "Output token throughput (tok/s)": 24.8763, "Total token throughput (tok/s)": 51.3535, "Request throughput (req/s)": 0.0243, "Average latency (s)": 45.7115, "Average time to first token (s)": 0.6067, "Average time per output token (s)": 0.0441, "Average inter-token latency (s)": 0.044, "Average input tokens per request": 1089.9, "Average output tokens per request": 1024.0 } Processing: 100%|███████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 10/10 [07:37<00:00, 45.74s/it] 2025-10-28 09:17:49 - evalscope - INFO: Benchmarking summary: +-----------------------------------+-----------+ | Key | Value | +===================================+===========+ | Time taken for tests (s) | 457.285 | +-----------------------------------+-----------+ | Number of concurrency | 1 | +-----------------------------------+-----------+ | Total requests | 10 | +-----------------------------------+-----------+ | Succeed requests | 10 | +-----------------------------------+-----------+ | Failed requests | 0 | +-----------------------------------+-----------+ | Output token throughput (tok/s) | 24.8763 | +-----------------------------------+-----------+ | Total token throughput (tok/s) | 51.3535 | +-----------------------------------+-----------+ | Request throughput (req/s) | 0.0243 | +-----------------------------------+-----------+ | Average latency (s) | 45.7115 | +-----------------------------------+-----------+ | Average time to first token (s) | 0.6067 | +-----------------------------------+-----------+ | Average time per output token (s) | 0.0441 | +-----------------------------------+-----------+ | Average inter-token latency (s) | 0.044 | +-----------------------------------+-----------+ | Average input tokens per request | 1089.9 | +-----------------------------------+-----------+ | Average output tokens per request | 1024 | +-----------------------------------+-----------+ 2025-10-28 09:17:49 - evalscope - INFO: Percentile results: +-------------+----------+---------+----------+-------------+--------------+---------------+----------------+---------------+ | Percentiles | TTFT (s) | ITL (s) | TPOT (s) | Latency (s) | Input tokens | Output tokens | Output (tok/s) | Total (tok/s) | +-------------+----------+---------+----------+-------------+--------------+---------------+----------------+---------------+ | 10% | 0.5522 | 0.0436 | 0.0441 | 45.6268 | 1090 | 1024 | 22.3743 | 46.1689 | | 25% | 0.5545 | 0.0438 | 0.0441 | 45.6311 | 1090 | 1024 | 22.4109 | 46.2662 | | 50% | 0.5583 | 0.0441 | 0.0441 | 45.6709 | 1090 | 1024 | 22.4274 | 46.3003 | | 66% | 0.5585 | 0.0442 | 0.0441 | 45.6874 | 1090 | 1024 | 22.4371 | 46.3204 | | 75% | 0.5654 | 0.0444 | 0.0441 | 45.6921 | 1090 | 1024 | 22.4408 | 46.328 | | 80% | 0.6076 | 0.0444 | 0.0441 | 45.7668 | 1090 | 1024 | 22.443 | 46.3325 | | 90% | 1.0066 | 0.0447 | 0.0442 | 46.1366 | 1090 | 1024 | 22.4528 | 46.3528 | | 95% | 1.0066 | 0.0449 | 0.0442 | 46.1366 | 1090 | 1024 | 22.4528 | 46.3528 | | 98% | 1.0066 | 0.0452 | 0.0442 | 46.1366 | 1090 | 1024 | 22.4528 | 46.3528 | | 99% | 1.0066 | 0.0455 | 0.0442 | 46.1366 | 1090 | 1024 | 22.4528 | 46.3528 | +-------------+----------+---------+----------+-------------+--------------+---------------+----------------+---------------+ 2025-10-28 09:17:49 - evalscope - INFO: Save the summary to: outputs/20251028_090923/Qwen2.5-VL-3B-Instruct - Jetson AGX Orin 64GB Qwen2.5VL-7B-Instruct-AWQ 2025-10-28 08:49:51 - evalscope - INFO: Test connection successful. 2025-10-28 08:49:51 - evalscope - INFO: Save the data base to: outputs/20251028_084912/Qwen2.5-VL-7B-Instruct-AWQ/benchmark_data.db Processing: 90%|██████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████▍ | 9/10 [05:25<00:36, 36.16s/it]2025-10-28 08:55:54 - evalscope - INFO: { "Time taken for tests (s)": 362.1074, "Number of concurrency": 1, "Total requests": 10, "Succeed requests": 10, "Failed requests": 0, "Output token throughput (tok/s)": 31.4132, "Total token throughput (tok/s)": 64.7284, "Request throughput (req/s)": 0.0307, "Average latency (s)": 36.1938, "Average time to first token (s)": 0.8838, "Average time per output token (s)": 0.0345, "Average inter-token latency (s)": 0.0359, "Average input tokens per request": 1086.0, "Average output tokens per request": 1024.0 } Processing: 100%|███████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 10/10 [06:02<00:00, 36.22s/it] 2025-10-28 08:55:54 - evalscope - INFO: Benchmarking summary: +-----------------------------------+-----------+ | Key | Value | +===================================+===========+ | Time taken for tests (s) | 362.107 | +-----------------------------------+-----------+ | Number of concurrency | 1 | +-----------------------------------+-----------+ | Total requests | 10 | +-----------------------------------+-----------+ | Succeed requests | 10 | +-----------------------------------+-----------+ | Failed requests | 0 | +-----------------------------------+-----------+ | Output token throughput (tok/s) | 31.4132 | +-----------------------------------+-----------+ | Total token throughput (tok/s) | 64.7284 | +-----------------------------------+-----------+ | Request throughput (req/s) | 0.0307 | +-----------------------------------+-----------+ | Average latency (s) | 36.1938 | +-----------------------------------+-----------+ | Average time to first token (s) | 0.8838 | +-----------------------------------+-----------+ | Average time per output token (s) | 0.0345 | +-----------------------------------+-----------+ | Average inter-token latency (s) | 0.0359 | +-----------------------------------+-----------+ | Average input tokens per request | 1086 | +-----------------------------------+-----------+ | Average output tokens per request | 1024 | +-----------------------------------+-----------+ 2025-10-28 08:55:54 - evalscope - INFO: Percentile results: +-------------+----------+---------+----------+-------------+--------------+---------------+----------------+---------------+ | Percentiles | TTFT (s) | ITL (s) | TPOT (s) | Latency (s) | Input tokens | Output tokens | Output (tok/s) | Total (tok/s) | +-------------+----------+---------+----------+-------------+--------------+---------------+----------------+---------------+ | 10% | 0.8013 | 0.034 | 0.0345 | 36.0776 | 1090 | 1024 | 28.2728 | 57.5523 | | 25% | 0.8075 | 0.0343 | 0.0345 | 36.0778 | 1090 | 1024 | 28.3045 | 58.3678 | | 50% | 0.8141 | 0.0345 | 0.0345 | 36.1312 | 1090 | 1024 | 28.3511 | 58.509 | | 66% | 0.8146 | 0.0347 | 0.0345 | 36.1381 | 1090 | 1024 | 28.3599 | 58.5296 | | 75% | 0.8195 | 0.0348 | 0.0345 | 36.178 | 1090 | 1024 | 28.3831 | 58.5477 | | 80% | 0.9132 | 0.0349 | 0.0346 | 36.2186 | 1090 | 1024 | 28.3833 | 58.5956 | | 90% | 1.4437 | 0.0352 | 0.0346 | 36.8545 | 1090 | 1024 | 28.4154 | 58.596 | | 95% | 1.4437 | 0.0358 | 0.0346 | 36.8545 | 1090 | 1024 | 28.4154 | 58.596 | | 98% | 1.4437 | 0.0691 | 0.0346 | 36.8545 | 1090 | 1024 | 28.4154 | 58.596 | | 99% | 1.4437 | 0.0694 | 0.0346 | 36.8545 | 1090 | 1024 | 28.4154 | 58.596 | +-------------+----------+---------+----------+-------------+--------------+---------------+----------------+---------------+ 2025-10-28 08:55:54 - evalscope - INFO: Save the summary to: outputs/20251028_084912/Qwen2.5-VL-7B-Instruct-AWQ - Jetson AGX Orin 64GB Qwen2.5VL-3B-Instruct-AWQ 2025-10-28 09:02:24 - evalscope - INFO: Test connection successful. 2025-10-28 09:02:25 - evalscope - INFO: Save the data base to: outputs/20251028_090200/Qwen2.5-VL-3B-Instruct-AWQ/benchmark_data.db Processing: 90%|██████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████▍ | 9/10 [03:10<00:21, 21.15s/it]2025-10-28 09:05:57 - evalscope - INFO: { "Time taken for tests (s)": 211.5724, "Number of concurrency": 1, "Total requests": 10, "Succeed requests": 10, "Failed requests": 0, "Output token throughput (tok/s)": 53.7527, "Total token throughput (tok/s)": 110.97, "Request throughput (req/s)": 0.0525, "Average latency (s)": 21.1406, "Average time to first token (s)": 0.5731, "Average time per output token (s)": 0.0201, "Average inter-token latency (s)": 0.0201, "Average input tokens per request": 1090.0, "Average output tokens per request": 1024.0 } Processing: 100%|███████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 10/10 [03:31<00:00, 21.17s/it] 2025-10-28 09:05:57 - evalscope - INFO: Benchmarking summary: +-----------------------------------+-----------+ | Key | Value | +===================================+===========+ | Time taken for tests (s) | 211.572 | +-----------------------------------+-----------+ | Number of concurrency | 1 | +-----------------------------------+-----------+ | Total requests | 10 | +-----------------------------------+-----------+ | Succeed requests | 10 | +-----------------------------------+-----------+ | Failed requests | 0 | +-----------------------------------+-----------+ | Output token throughput (tok/s) | 53.7527 | +-----------------------------------+-----------+ | Total token throughput (tok/s) | 110.97 | +-----------------------------------+-----------+ | Request throughput (req/s) | 0.0525 | +-----------------------------------+-----------+ | Average latency (s) | 21.1406 | +-----------------------------------+-----------+ | Average time to first token (s) | 0.5731 | +-----------------------------------+-----------+ | Average time per output token (s) | 0.0201 | +-----------------------------------+-----------+ | Average inter-token latency (s) | 0.0201 | +-----------------------------------+-----------+ | Average input tokens per request | 1090 | +-----------------------------------+-----------+ | Average output tokens per request | 1024 | +-----------------------------------+-----------+ 2025-10-28 09:05:57 - evalscope - INFO: Percentile results: +-------------+----------+---------+----------+-------------+--------------+---------------+----------------+---------------+ | Percentiles | TTFT (s) | ITL (s) | TPOT (s) | Latency (s) | Input tokens | Output tokens | Output (tok/s) | Total (tok/s) | +-------------+----------+---------+----------+-------------+--------------+---------------+----------------+---------------+ | 10% | 0.4997 | 0.0197 | 0.0201 | 21.0531 | 1090 | 1024 | 48.2363 | 99.5815 | | 25% | 0.5061 | 0.0199 | 0.0201 | 21.0533 | 1090 | 1024 | 48.4606 | 100.0447 | | 50% | 0.5137 | 0.0201 | 0.0201 | 21.0881 | 1090 | 1024 | 48.5731 | 100.2768 | | 66% | 0.5175 | 0.0202 | 0.0201 | 21.0952 | 1090 | 1024 | 48.6303 | 100.3951 | | 75% | 0.5212 | 0.0203 | 0.0201 | 21.1306 | 1090 | 1024 | 48.6385 | 100.4118 | | 80% | 0.6271 | 0.0204 | 0.0201 | 21.2288 | 1090 | 1024 | 48.6389 | 100.4128 | | 90% | 1.0261 | 0.0206 | 0.0202 | 21.5677 | 1090 | 1024 | 48.6433 | 100.4219 | | 95% | 1.0261 | 0.0207 | 0.0202 | 21.5677 | 1090 | 1024 | 48.6433 | 100.4219 | | 98% | 1.0261 | 0.0209 | 0.0202 | 21.5677 | 1090 | 1024 | 48.6433 | 100.4219 | | 99% | 1.0261 | 0.0211 | 0.0202 | 21.5677 | 1090 | 1024 | 48.6433 | 100.4219 | +-------------+----------+---------+----------+-------------+--------------+---------------+----------------+---------------+ 2025-10-28 09:05:57 - evalscope - INFO: Save the summary to: outputs/20251028_090200/Qwen2.5-VL-3B-Instruct-AWQ - Qwen2.5-VL-32B-Instruct-AWQ 2025-10-28 09:44:55 - evalscope - INFO: Test connection successful. 2025-10-28 09:44:56 - evalscope - INFO: Save the data base to: outputs/20251028_094248/Qwen2.5-VL-32B-Instruct-AWQ/benchmark_data.db Processing: 90%|█████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████▌ | 9/10 [19:20<02:08, 128.92s/it]2025-10-28 10:06:25 - evalscope - INFO: { "Time taken for tests (s)": 1289.0551, "Number of concurrency": 1, "Total requests": 10, "Succeed requests": 10, "Failed requests": 0, "Output token throughput (tok/s)": 8.8265, "Total token throughput (tok/s)": 18.2219, "Request throughput (req/s)": 0.0086, "Average latency (s)": 128.8895, "Average time to first token (s)": 2.9977, "Average time per output token (s)": 0.1231, "Average inter-token latency (s)": 0.1333, "Average input tokens per request": 1090.0, "Average output tokens per request": 1024.0 } Processing: 100%|██████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 10/10 [21:29<00:00, 128.92s/it] 2025-10-28 10:06:25 - evalscope - INFO: Benchmarking summary: +-----------------------------------+-----------+ | Key | Value | +===================================+===========+ | Time taken for tests (s) | 1289.06 | +-----------------------------------+-----------+ | Number of concurrency | 1 | +-----------------------------------+-----------+ | Total requests | 10 | +-----------------------------------+-----------+ | Succeed requests | 10 | +-----------------------------------+-----------+ | Failed requests | 0 | +-----------------------------------+-----------+ | Output token throughput (tok/s) | 8.8265 | +-----------------------------------+-----------+ | Total token throughput (tok/s) | 18.2219 | +-----------------------------------+-----------+ | Request throughput (req/s) | 0.0086 | +-----------------------------------+-----------+ | Average latency (s) | 128.889 | +-----------------------------------+-----------+ | Average time to first token (s) | 2.9977 | +-----------------------------------+-----------+ | Average time per output token (s) | 0.1231 | +-----------------------------------+-----------+ | Average inter-token latency (s) | 0.1333 | +-----------------------------------+-----------+ | Average input tokens per request | 1090 | +-----------------------------------+-----------+ | Average output tokens per request | 1024 | +-----------------------------------+-----------+ 2025-10-28 10:06:25 - evalscope - INFO: Percentile results: +-------------+----------+---------+----------+-------------+--------------+---------------+----------------+---------------+ | Percentiles | TTFT (s) | ITL (s) | TPOT (s) | Latency (s) | Input tokens | Output tokens | Output (tok/s) | Total (tok/s) | +-------------+----------+---------+----------+-------------+--------------+---------------+----------------+---------------+ | 10% | 2.9331 | 0.1222 | 0.1229 | 128.8109 | 1090 | 1024 | 7.9424 | 16.3968 | | 25% | 2.9341 | 0.1226 | 0.123 | 128.8433 | 1090 | 1024 | 7.9426 | 16.3971 | | 50% | 2.9441 | 0.1231 | 0.1231 | 128.904 | 1090 | 1024 | 7.9441 | 16.4002 | | 66% | 2.9516 | 0.1234 | 0.1231 | 128.9153 | 1090 | 1024 | 7.946 | 16.4042 | | 75% | 2.9521 | 0.1236 | 0.1231 | 128.9252 | 1090 | 1024 | 7.9476 | 16.4075 | | 80% | 2.9891 | 0.1238 | 0.1231 | 128.9278 | 1090 | 1024 | 7.9496 | 16.4117 | | 90% | 3.4695 | 0.1246 | 0.1231 | 129.1473 | 1090 | 1024 | 7.9595 | 16.4321 | | 95% | 3.4695 | 0.2466 | 0.1231 | 129.1473 | 1090 | 1024 | 7.9595 | 16.4321 | | 98% | 3.4695 | 0.2475 | 0.1231 | 129.1473 | 1090 | 1024 | 7.9595 | 16.4321 | | 99% | 3.4695 | 0.2479 | 0.1231 | 129.1473 | 1090 | 1024 | 7.9595 | 16.4321 | +-------------+----------+---------+----------+-------------+--------------+---------------+----------------+---------------+ 2025-10-28 10:06:25 - evalscope - INFO: Save the summary to: outputs/20251028_094248/Qwen2.5-VL-32B-Instruct-AWQ
